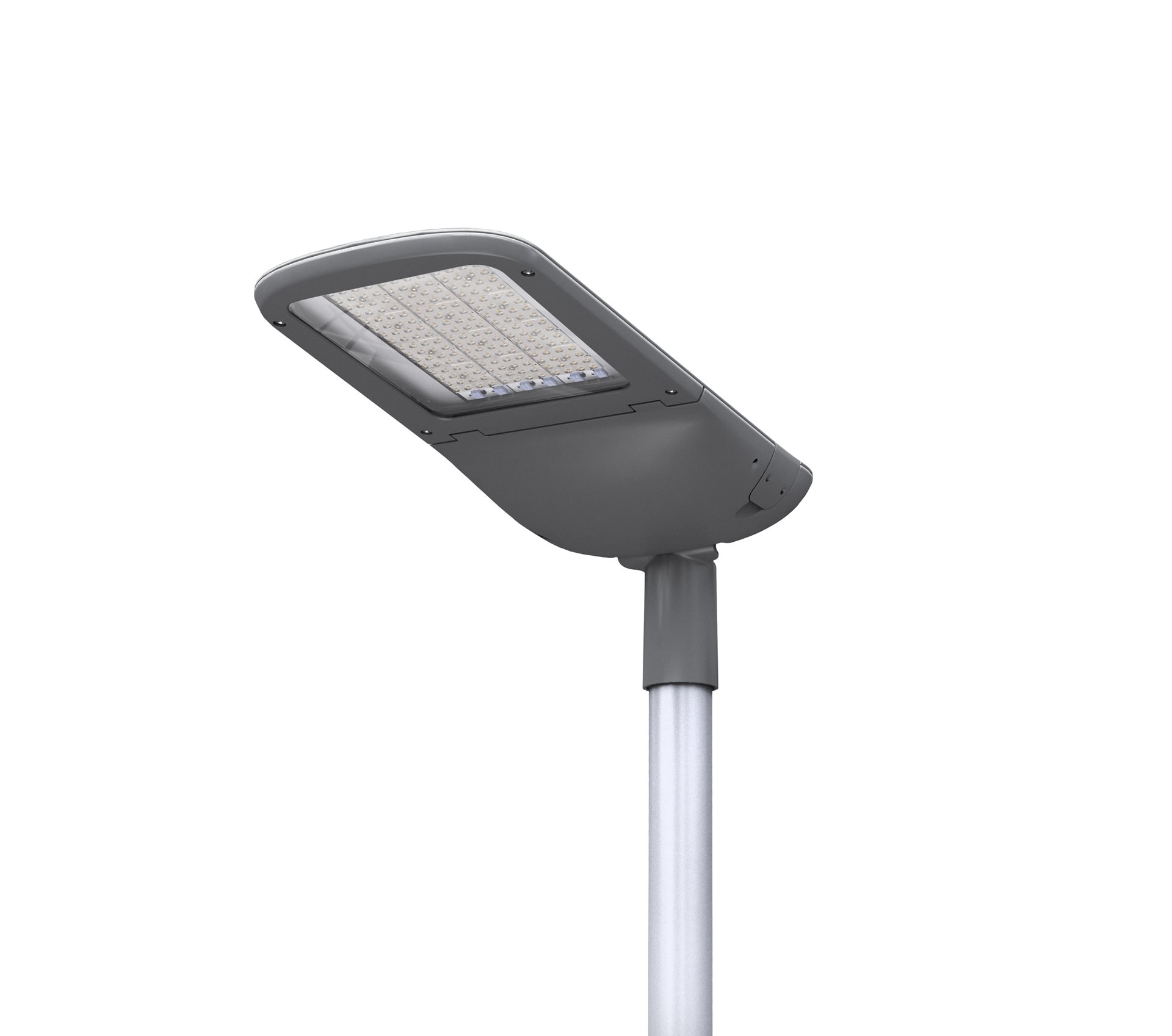

XT

ENEC, IP66, IK 09, from -40°C to 45°C, Ra>80

2 200, 2 700, 3 000, 4 000 and 5 000 K
power input from 10 W to 212 W and efficiency up to 162 lm/W
luminous flux from 1 253 lm to 31 308 lm
service life L90B10 = 100 000 hours
protection class I.and II.
more than 30 types of optics, including optics for pedestrian crossing

We offer adjustments according to your requirements

Variable modern LED luminaire with high efficiency.

Luminar can be used for:

road lighting (such as roads, highways, etc.)
park lighting
pedestrian crossing lighting
bicycle path lighting
parking lot lighting
area lightning

The luminaire was designed to be used with Smart Cities systems. Access to the luminaire is possible without any tools. In the event of the failure, the optical part, and also the electronic part is replaceable from the lamp post without the use of tools. The LED module and ballast both can be replaced separately.
